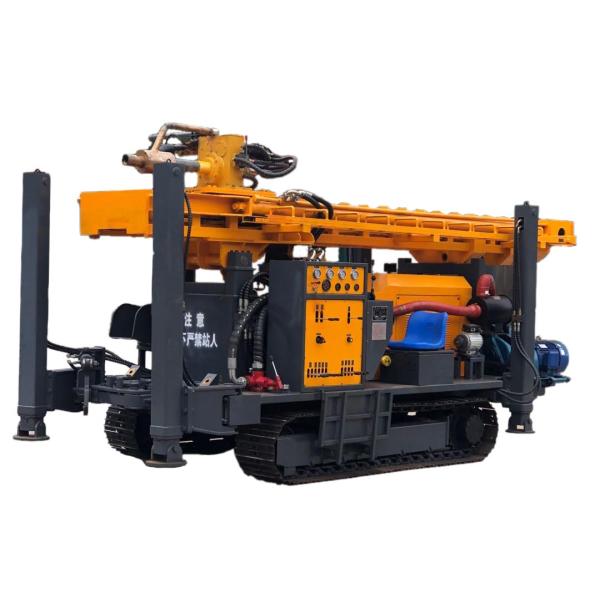

Steel Crawler Mounted Rotary 400M Portable Water Drilling Rig

Name: Steel Crawler Mounted Rotary 400M Portable Water Drilling Rig
Brand: ShiTan
Price: 1 USD

Quality Steel Crawler Mounted Rotary 400M Portable Water Drilling Rig for sale

Brand Name : ShiTan

Model Number : ST400

Certification : ISO9001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, T/T, Western Union

Delivery Time : Within 7-12 days

Packaging Details : Wooden box

Type : hydraulic crawler drilling machine

Max. Drilling depth : 400

Dimension(L*W*H) : 6m×2m×2.5m

Power Type : 89

Usage : Water Well

feature : high drilling efficiency

Drilling diameter : 105-300mm

Rod length : 6M

Lifting force : 22T

Fast lifting speed : 24m/min

Drilling efficiency : 10-35m/h

Moving speed : 21

Contact Now

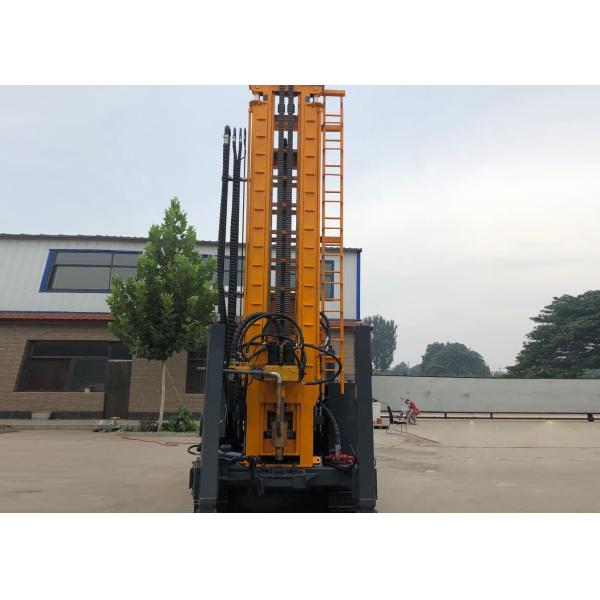

Steel Crawler Mounted Rotary Portable Water Well Drilling Rig Machine

Introduction of crawler type water well drilling rig:

Pneumatic Water Water Well Drilling Rig can create drilling jobs in different strata, borehole diameter can up to 130-400mm. The rig with hydraulic technology, suporting gh torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage airfilter, air compressor intake design, prolong the service life of diesel engine.

Special pump set design is convenient for maintenance and reduce the cost of maintenance. Centralized control of the hydraulic controltable, convenient operation.

The Drilling Rig Machine adopts a excavator crawler chassis and has strong off-road performance. The independent module design allows the drill to be mounted on the truck to increase its mobility.
Two speeds of rotating and advancing speed can meet the different needs of soil and rock drilling Combined positioner, the positioning disc can be adjusted and replaced according to different types of drill pipe and impactor, so as toensure the accuracy and reliability of the posoning and centering.
The hoisting mechanism is convenient for hoisting of drill pipe and impactor, so as to reduce the labor intensity.

main feature of crawler mounted water well drilling rig machine:

1. The pneumatic water well drilling rig is mechanical transmission, the other is hydraulic transmission, and the power is effectively utilized. The overall power loss is small and the drilling cost is low.
2. The water well drilling rig has more positive speed series and 14-500r/min speed range, and the output torque is 13428-250N.m.
3, the rig has a 2 speed reverse speed, easy to deal with accidents.
4. The water well drilling rig adopts long-stroke double-speed mechanism and mechanical power head, and the power head stroke is 3800MM, which is used to improve drilling efficiency and reduce the occurrence of blockage and burning drill accidents.
5. The water well drilling rig adopts double oil pump for oil supply. When drilling, it uses single pump. When lifting the drill,it uses two pumps to merge; the power loss is small and the auxiliary time is short.
6. The rig has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.
7, using the crawler chassis, the leg cylinder stroke 1.5m can be automatically loaded, easy to move and transport.
8. The water well drilling rig is in machinery. Some functional interfaces are reserved in the hydraulic system, and the functions can be expanded according to the process requirements of different users.

Parameters of crawler type water well drilling rig:

Product Name	Pneumatic Drilling Rig
Model	ST400
Drilling Diameter	105-300mm
Drilling Depth	400m
One-time Advance Length of the Drill	3000/6000mm
Walking Speed	6km/h
Climbing Ability	25
Min. Ground Clearance	300mm
Working Air Pressure	1.7-3.5Mpa
Air Consumption	17-35m3/min
Main Power	100KW/6Cylinder
Rotation	45-75rpm
Rotary Torque	9000-10000N.m
Dimension	6m×2m×2.5m
Total Weight	10T
